Premium Remediation Monitoring System Protects Communities, Ensures Compliance During SoCal Industrial Redevelopment

A top-rated international environmental engineering firm deployed an all-in-one remediation monitoring system to safeguard citizens during the large-scale redevelopment of a former industrial manufacturing site in Los Angeles. One of only three remediation monitors pre-approved by the South Coast Air Quality Management District (SCAQMD), the Aeroqual Dust Sentry exceeded all regulatory requirements, collecting data in real-time and minimizing fugitive dust emissions. Cloud capability enabled remote monitoring, reducing time spent on-site, and producing defensible data to put the surrounding community at ease.

“We found the Dust Sentry system reduced a lot of leg work associated with traditional air monitoring activities.”

Ray Huff, SCS Vice President
Download Case Study

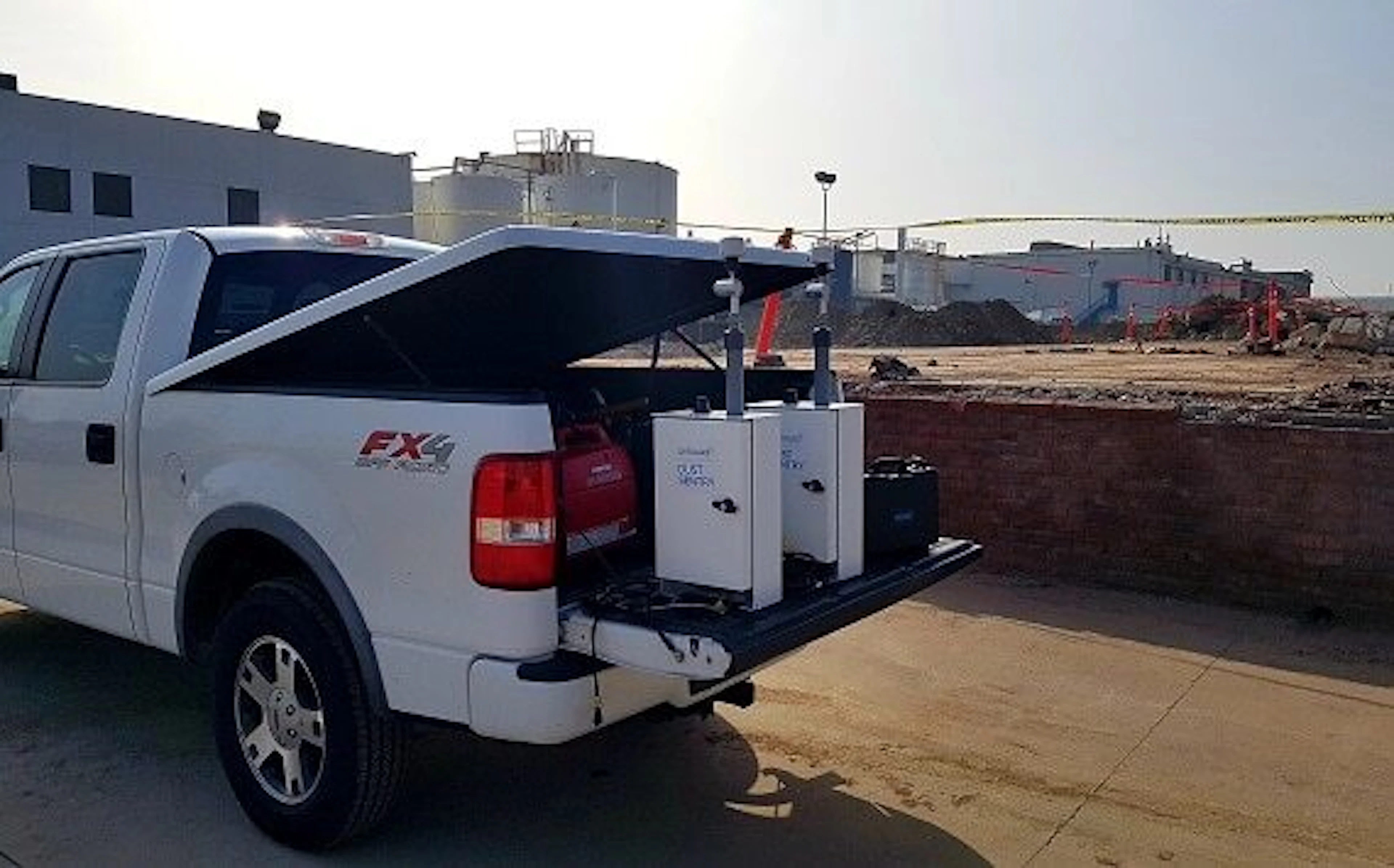

SCS_Case_Study_Truck_Dust_Sentry

Strict Regulations Require a Purpose-Built Remediation Monitoring System

SCS Engineers, specialists in helping clients reduce the risks associated with remediation, were asked to design an environmental monitoring plan that met strict local requirements for a new industrial development in Los Angeles. Their client is one of the largest developers of industrial real estate in the United States, with a portfolio including millions of square feet of industrial warehouse space across dozens of markets. This client wanted to redevelop a former industrial manufacturing site in the Los Angeles area into a world-class industrial park. If not monitored correctly, the process of converting environmentally impacted land can cause significant health risks for surrounding communities.

Building demolition complete
Building demolition complete, SCS Engineers performed soil remediation and associated dust monitoring services for the new industrial development in Los Angeles

This particular site posed an increased risk level, having been used for manufacturing for approximately 70 years. Previous operations included plating, degreasing, heat-treating, oil quenching, metal machining, painting, and metal treating. Several sumps and pits were identified as being contaminated with hazardous chemicals used in association with these activities, including heavy metals, volatile organic compounds (VOC), and total petroleum hydrocarbons (TPH). To ensure community safety, The California Department of Toxic Substances Control (DTSC) provided regulatory oversight under the Brownfields Cleanup Program.

All remediation activities in Southern California require compliance with SCAQMD Rule 1466, designed to minimize fugitive dust emissions from earth-moving activities at sites containing specific toxic air contaminants. Under Rule 1466, when contaminated earth-moving activities or vehicular movement in contaminated areas occurs, the owner/operator must conduct continuous direct-reading. Remediation sites must be monitored in real-time, tracking concentrations of PM10 at upwind and downwind locations using a federal equivalent method or an Executive Officer-approved method.

Given the approved remediation program was to include excavation of soils impacted with VOCs, metals, and TPH and disposal at offsite permitted landfills, an appropriately robust monitoring system was required.

Real-Time Data Helps Safeguard Local Communities

SCS Vice-President, Ray Huff, investigated several air monitoring options before deciding on the Aeroqual Dust Sentry PM10 system. With over 27 years of environmental consulting experience, assisting clients with air quality compliance for hazardous substance site investigations, remediation sites, and GHG/air regulatory compliance projects, Ray knew exactly what was needed. He selected the Dust Sentry system because it not only met the requirements of SCAQMD Rule 1466; it exceeded them.

The Dust Sentry is purpose-designed for remediation and construction site monitoring, allowing Ray and the team to remotely monitor the site during excavation activities. The Aeroqual Cloud server makes it easy to compile the necessary information on-demand. A robust and rugged design includes a weatherproof enclosure and heated PM inlet to minimize false-positive alerts caused by high humidity events. Overall, its suite of features makes it easier for consultants to comply with Rule 1466. For example, the rule requires if the PM10 site activity contribution (downwind minus upwind concentration) exceeds 25 µg/m3 averaged over two hours, the owner/operator must cease earth-moving activities and implement additional dust control measures to protect citizens. The Dust Sentry is unique in that it can report 2-hour averaged data with alerts, along with other environmental and industrial hygiene time-weighted averages.

SCS-Engineers-Case-Study-2018_1

Aeroqual also offers a unique site apportionment app for consulting and compliance purposes. This innovative software tool calculates the difference between upwind and downwind data on a site and reports the real-time PM10 site activity contribution, saving plenty of man-hours. Data can be exported for reporting, with real-time values used to trigger an SMS or email alert. If an exceedance occurs, the system sends an automatic alert to the site manager, prompting immediate dust control measures.

Dust_Sentry_SMS

“In the future, we will definitely specify Aeroqual air monitoring technology for our upcoming projects.” — Ray Huff, SCS Vice-President.

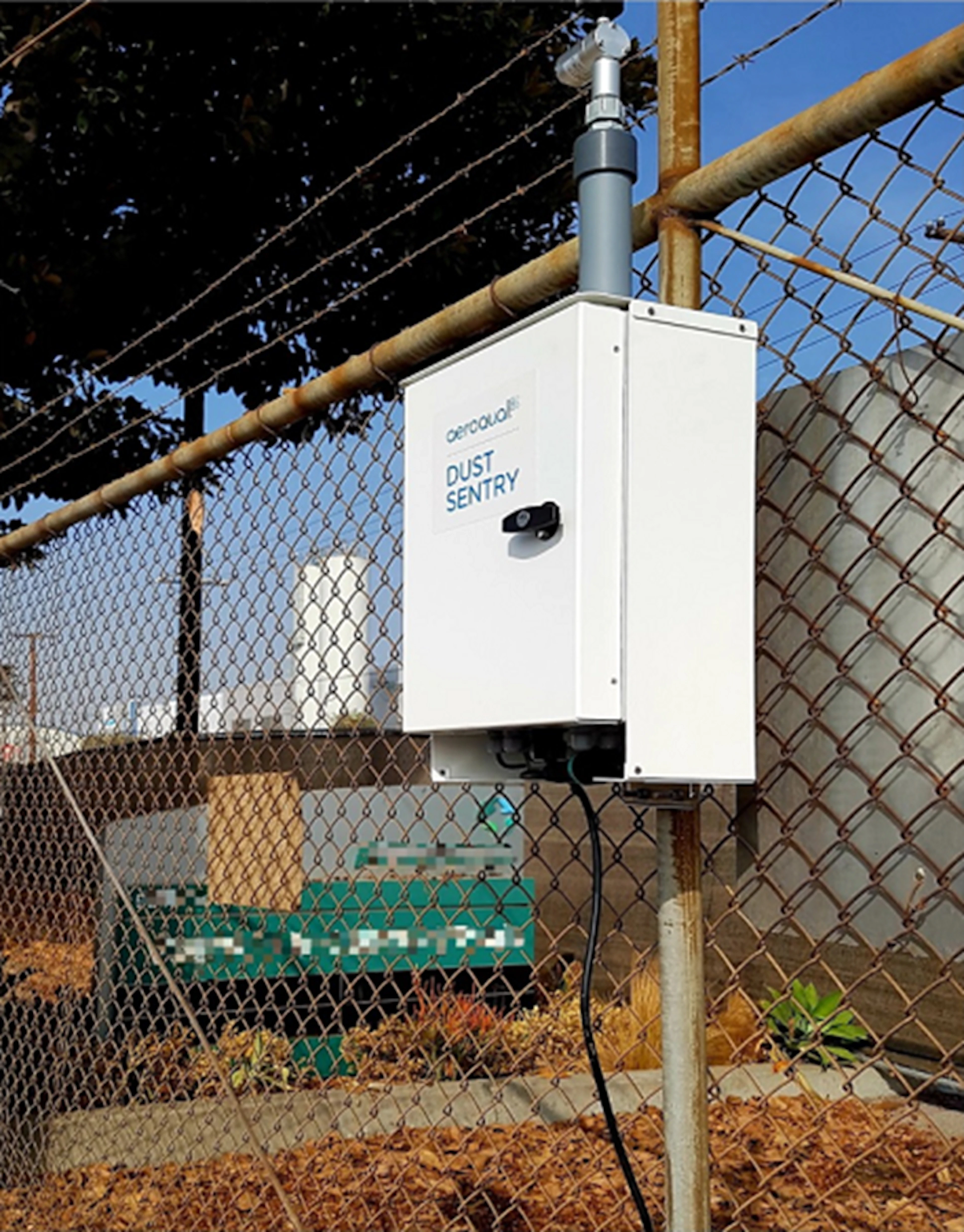

SCS Engineers installed two Dust Sentry PM10 monitors, along with a wind sensor integrated with one monitor on the wind perimeter for plotting dust rose charts. A Hi-Vol sampler was co-located to collect particulate samples for composition analysis by an offsite laboratory. Since the monitoring program was designed to run on a short-term basis, small generators were used to power the instruments during site work hours.

“We were pleasantly surprised at how easy it was to connect to the Dust Sentry Wi-Fi hotspot with a smartphone and get real-time data and alerts on-site,” says Mr. Huff.

“Once we set up the modems and Aeroqual Cloud, we were able to remotely monitor the site from our office in Long Beach. The software tools available with the instrument and cloud platform are impressive. We found the Dust Sentry system reduced a lot of leg work associated with traditional air monitoring activities. In the future, we will definitely specify Aeroqual air monitoring technology for our upcoming projects.”

Aeroqual’s purpose-built remediation technology played an important role in exceeding all regulatory requirements while protecting civilians and controlling fugitive emissions. For more on remediation, visit our blog.

ABOUT

SCS Engineers is an international environmental engineering firm and a top-rated performer in environmental consulting services. They have been rated the number one solid waste engineering company in the United States by Engineering News Record a total of seven times. Among other services, SCS helps its clients reduce the risks associated with converting environmentally impacted land into developable properties.

Aeroqual develops integrated monitoring and software systems underpinned by industry-leading sensor technology to support environmental, health, and safety professionals in protecting people and the planet from the impact of air pollution. That’s why governments, industry, researchers, and consultants trust Aeroqual to deliver actionable data for their air quality monitoring projects.
