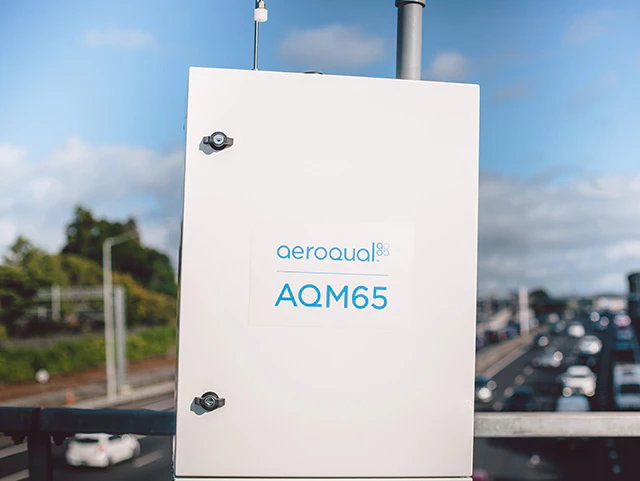

The AQM 65 is a fully integrated air monitoring station offering near reference levels of performance. The size of a suitcase it can be configured to measure up to 20 different gaseous and particulate pollutants and environmental parameters simultaneously. The AQM 65 offers the optimal balance between performance and price – measuring criteria pollutants to WHO air quality limits yet costing 3-5 x less than a traditional station based on analyzer technology.
This AQM 65 comes with a fully integrated calibration system which enables automatic scheduling of calibrations. It also greatly reduces the costs of servicing by removing the need to visit site to carry out calibrations. This has huge advantages where the costs of visiting site are high or the unit is operating remotely or in harsh environments, making site access difficult.
What can it measure?
With the AQM 65 you can continuously measure common air pollutants including ozone (O3), nitrogen dioxide (NO2), nitrogen oxides (NOx), carbon monoxide (CO), sulphur dioxide (SO2), volatile organic compounds (VOC), hydrogen sulphide (H2S), carbon dioxide (CO2), particulate matter (TSP, PM10, PM2.5, PM1), noise and meteorological parameters such as rainfall, temperature, humidity, pressure, wind speed and direction.
Linked together in a network, and coupled with remote data acquisition, AQM 65s will form a lower cost, high density, air pollution monitoring system for a city or industrial perimeter. With near reference levels of performance the AQM 65 ensures air quality data is reliable and robust and traceable back to recognized international standards e.g. USEPA (40 CFR Part 53) and EU (2008/50/EC).
Compact size: Easy to deploy, relocate and low power consumption
The compact size has numerous advantages. The unit can be transported by car, carried by two people, and installed and operational in under half an hour. This makes deployment and relocation quick and easy. It also opens up monitoring locations that were previously inaccessible to traditional air monitoring stations. Because the enclosure is small the energy required to temperature control it is much lower than for a traditional monitoring station. Lower power consumption opens up the possibility of remote power supply and further decreases the total cost of ownership.

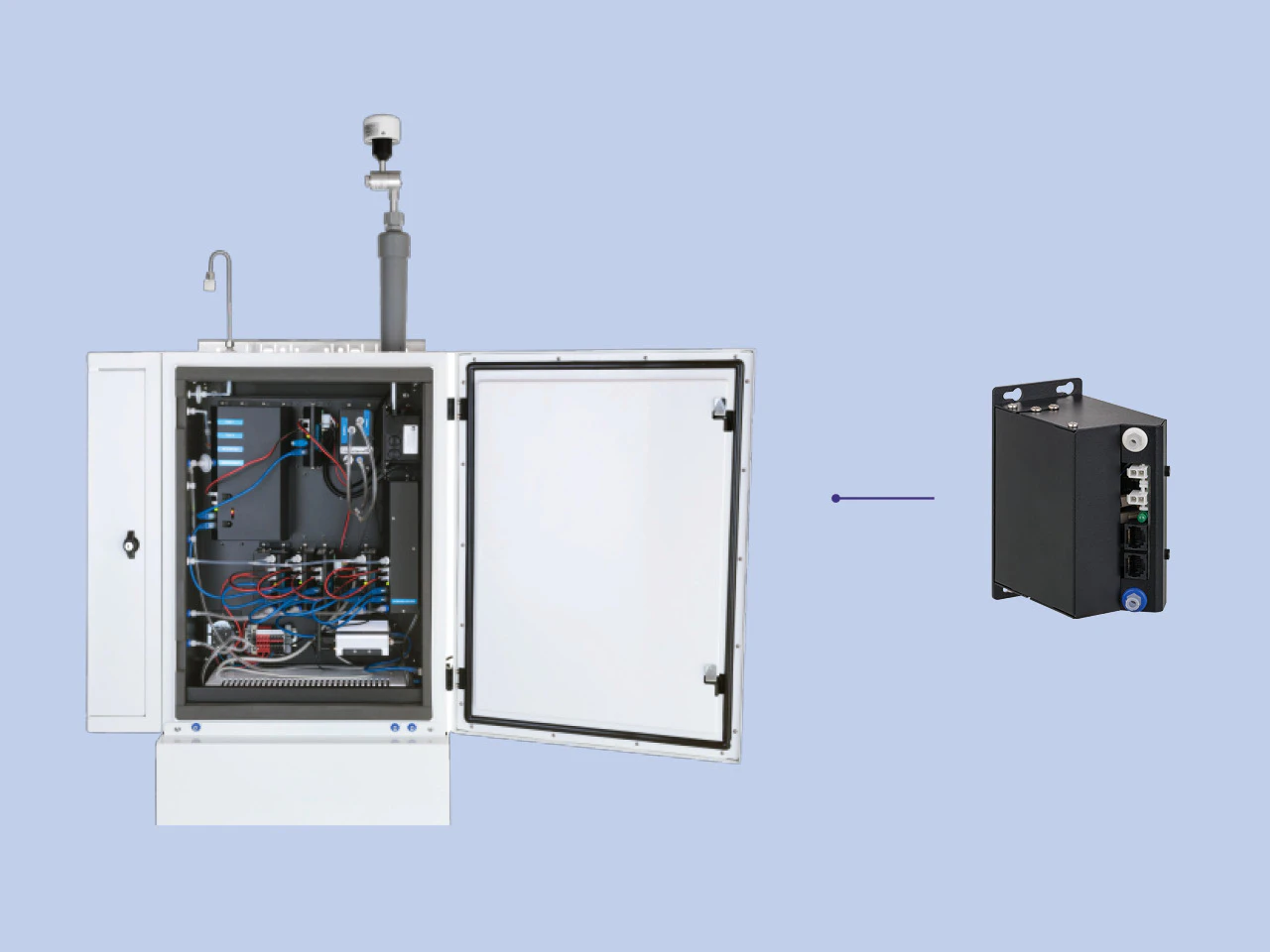

Unique modular design
The modular design of the AQM 65 increases flexibility and makes maintenance and servicing easy. Order your AQM 65 with as many or as few sensors as you like – then purchase additional sensors when you need them. The sensors, packaged in modules, can be individually removed from the enclosure and sent away for servicing or simply swapped out for a new one. Such convenience decreases downtime and lowers the total cost of ownership. In a network you can also move sensor modules from one monitoring location to another according to your needs.

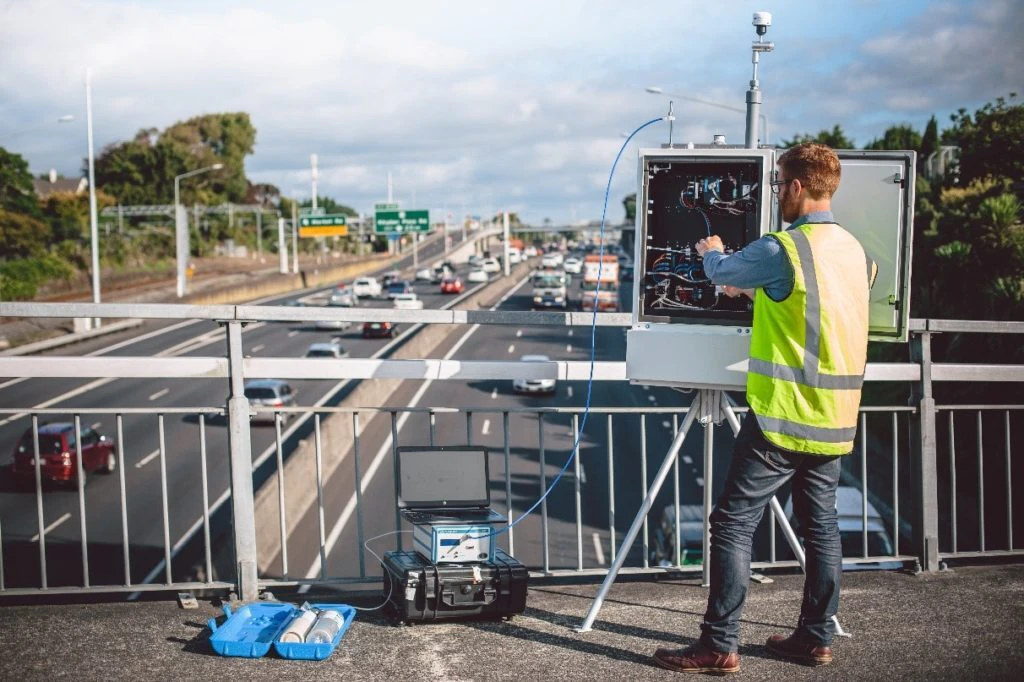

Industry-leading technology: Calibration
Unlike other sensor based instruments the AQM 65 is designed to be calibrated using standard calibration equipment used to calibrate ambient air quality analyzers. This ensures your measurements will be robust and traceable back to reference standards. Keep calibration up to date without the downtime, by purchasing the Aeroqual Hot-swap Service for AQM 65 modules.
The AQM 65 is supported by a global distribution network, meaning you’re never too far from a skilled technician ready to provide assistance and spare parts. In addition Aeroqual’s online training system is free to all our customers, meaning you can become an expert on your AQM system before it even arrives.
Air quality monitoring software
Once installed the instrument operating system – Aeroqual Connect – lets you access data, assess performance, schedule calibrations and diagnose faults remotely (if you choose to give us access, we can help with that too). Aeroqual Cloud offers even greater levels of convenience with enhanced browsing speeds, multiple user management, fail-safe backup, email and SMS alerts, and access to your data even when your instrument is offline.
The AQM 65 base system includes:
- Lockable IP65 enclosure with insulated aluminium construction
- Gas Sampling System (brushless DC pump, sampling system)
- Thermal Management System: Danfoss compressor, heater and TMS controller

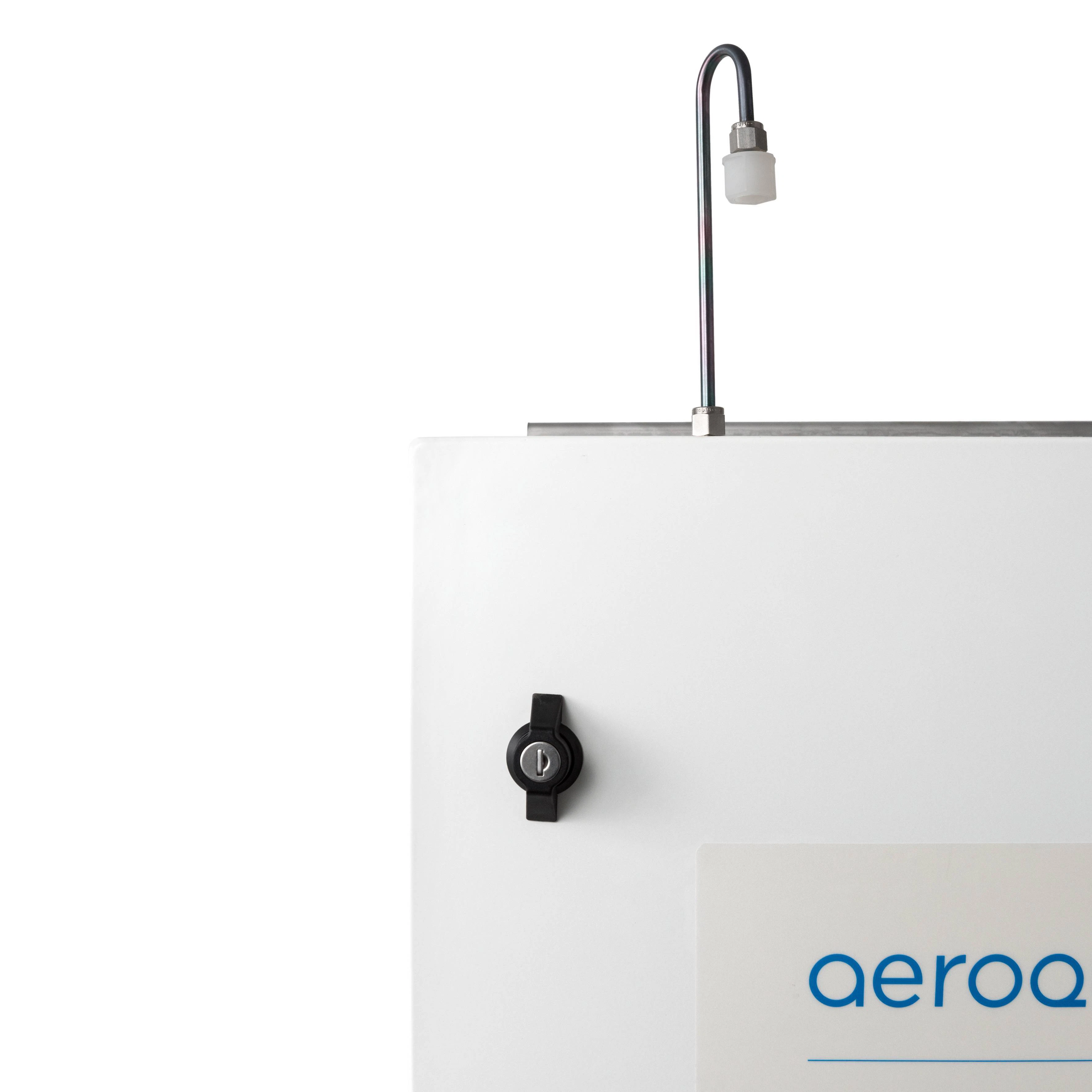

- Gas Inlet: Teflon, glass-coated stainless steel tubing, stainless steel fittings
- Embedded PC (Intel Atom, 1.6GHz, dual core, 2GB RAM, 32GB SSD hard drive)
- Communications: Ethernet, WIFI
- Aeroqual Connect software interface (configuration, diagnostics, and data acquisition)
- Aeroqual Cloud Support subscription, free for the life of the instrument, unlimited users
- Power Module (90-264 VAC, 47-63Hz)
- External Temperature & Humidity Sensor (-40 to 120° C; 0-100% RH)
- Pole and wall mount brackets
- Documentation (Hard Copy: User Guide, Log Book; Soft Copy on USB stick)
- Manufacturer’s Standard 12 month Warranty
- Free unlimited access to Aeroqual’s online training system
The integrated calibration system includes:
- Integrated traceable multi-point mass flowmeter and mass flow controller,
- Zero air source
- Excludes gas cylinders
For sensor modules and accessories please see the next tabs.
New York City Department of Environmental Protection (Van-mounted AQM 65 investigates localized issues)
Dubai Municipality (Fourteen-station network established for urban monitoring)
Department of Industrial Works (Investigation of air pollution concerns in large industrial region)
AngloGold Ashanti (Air quality station deployed after local community concern)

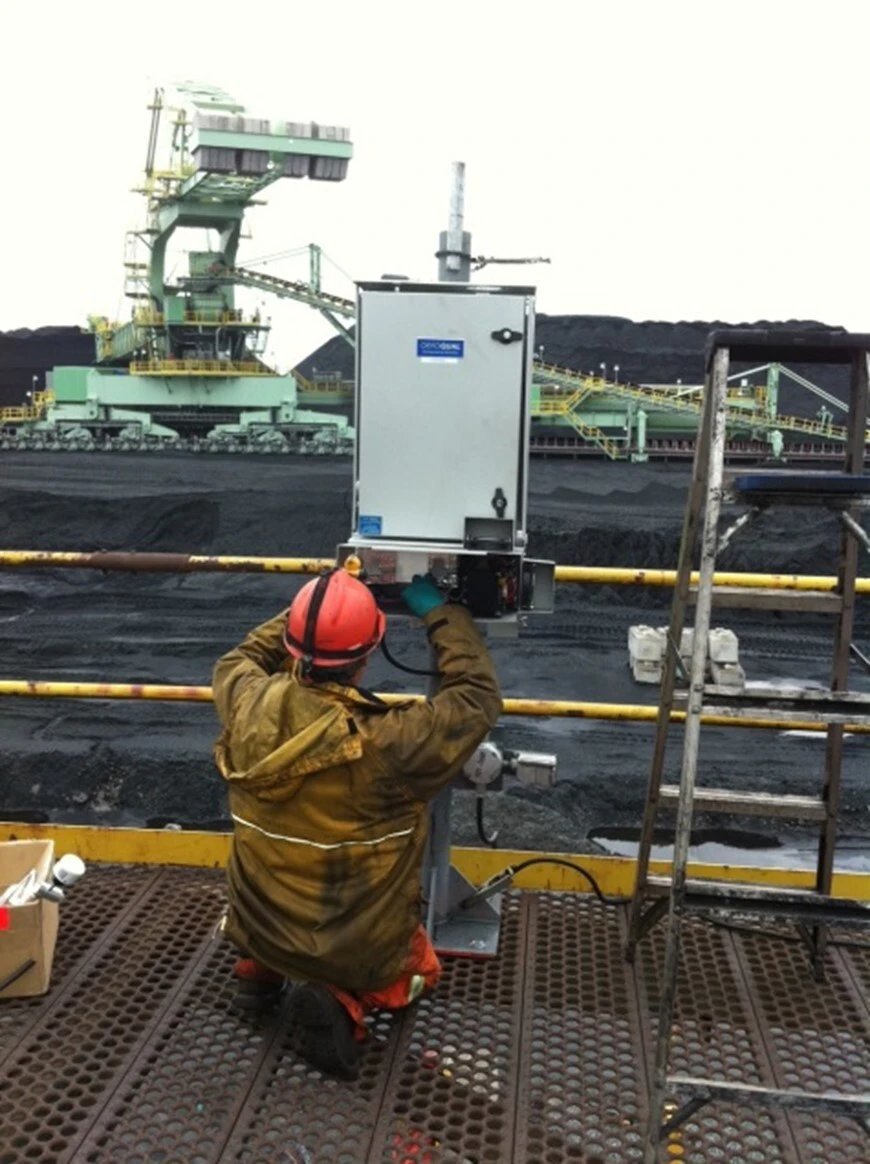

Ridley Coal Terminals (Air quality stations used to initiate control protocols for elevated dust or CO events)
YPF (Fenceline monitoring)
Egnatia Odos Motorway (Two air quality stations used to monitor and manage impact of the highway)
Research & Consultancy
Modern Geosciences (Air quality study of a large landfill in Texas)
State University of the Amazonas (Study on impact of urban development on population health)
URS Corporation (Six week study to gather real-time data to support analysis via dispersion modelling)
Connecticut Department of Energy & Environmental Protection (Co-location study)
New South Wales Office of Environment & Heritage (Co-location study)
