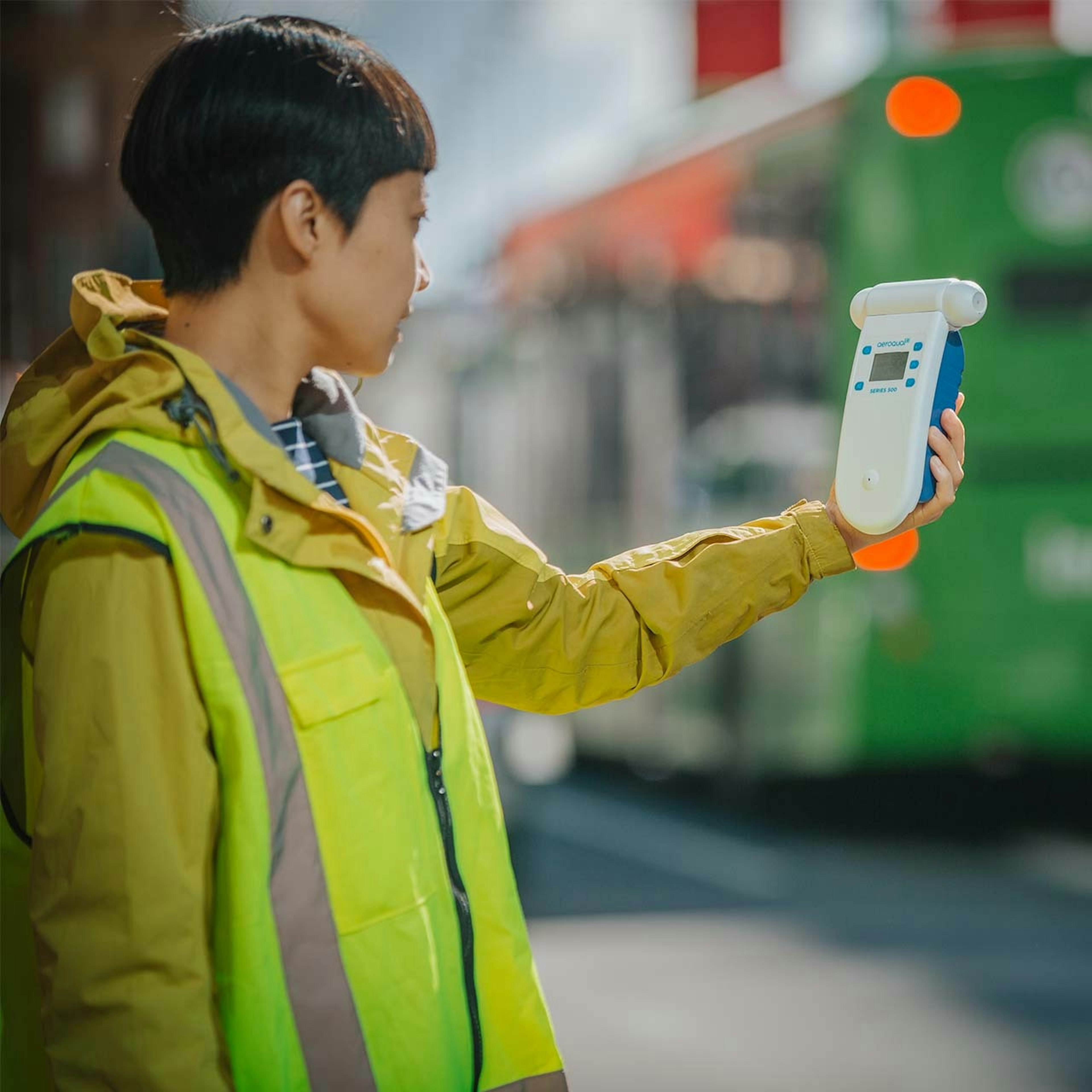

Benefits

  • Fits comfortably in the hand
  • One monitor compatible with four different types of ozone sensor
  • Data logged directly onto monitor base
  • Audible alarm functionality

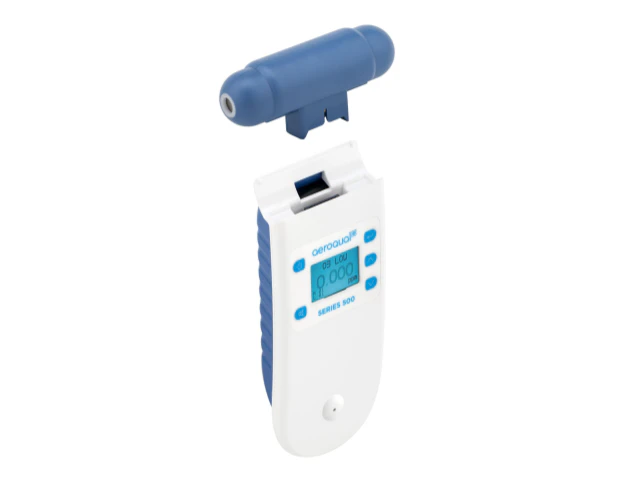

  • Changing sensors takes seconds and can be done anywhere
  • Remote sensor capability

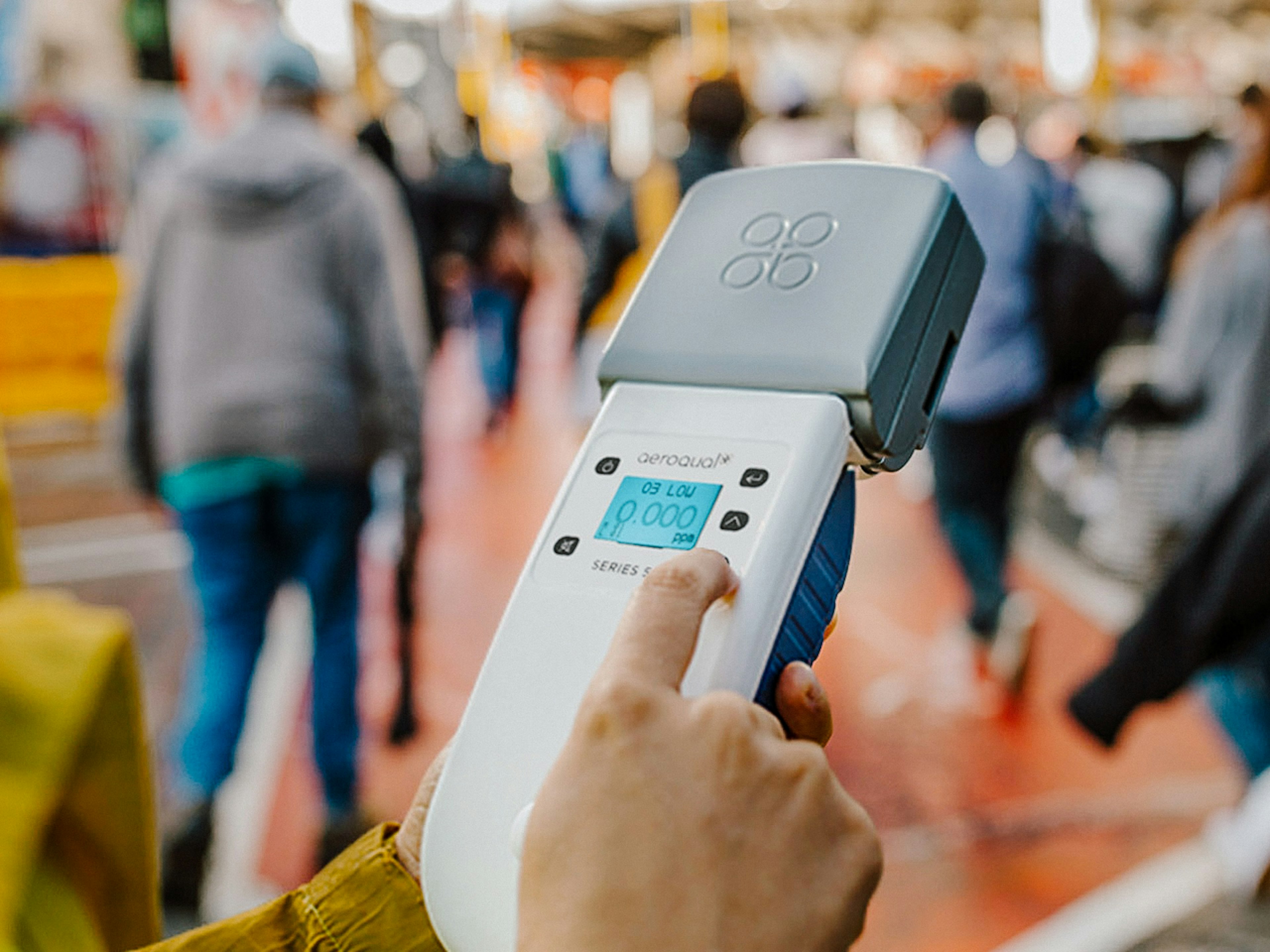

  • Long life lithium battery technology
  • Zero and span calibrate in the field
  • Free PC software (Windows 7, 8, XP compatible)
  • Connect direct to PC via USB

Applications

  • Source and leak detection
  • Process control
  • Health and safety monitoring
  • Indoor air quality

The Series 500 portable ozone gas monitor enables accurate real-time measurement of ozone in air. Data is stored on board the Series 500 with a maximum 8,188 records available. To download the data a USB cable is supplied for connection to PC. Free PC software provided with the Series 500 takes the data and presents it in a chart or table view. Data can be downloaded and viewed in Excel.

The monitor can also operate in control mode. Upper and lower control limits can be easily set directly on the display. Using the 0-5V output the Series 500 analyzer can be used to switch on or off an externally connected device such as an ozone generator or system in the presence of a predetermined level of gas. By selecting the optional wall-mount bracket and plugging in mains power the Series 500 is effectively able to act as a fixed monitor as well as a handheld portable device.

Other features on the Series 500 include monitor ID and location ID. Monitor ID identifies the monitor uniquely and ensures that all data from it are tied to that monitor. Location ID can be used to tag measurements to a specific location which is helpful when sampling at a number of sites over the course of a day or week. High and low alarms can also be configured to  alert when ozone concentrations have reach a user defined set point.

For those wanting to recalibrate on site the Series 500 allows adjustment of zero and span. Together with the R42 Calibration Accessory and calibration gas this function allows the sensor head to be fully recalibrated without having to return it to the factory. Alternatively the sensor head can be returned to Aeroqual for a factory calibration which includes a renewed calibration certificate.

  • Monitor base
  • LCD digital display
  • Lithium battery and charger
  • In-built datalogger
  • 0-5V output
  • Zero and span adjustment
  • Low and high alarm
  • Monitor to USB cable
  • PC software
  • Calibration Accessory

    Calibration Accessory

  • Large portable monitor carry case

    Large Portable Monitor Carry Case

  • Small portable monitor carry case

    Small Portable Monitor Carry Case

  • Industrial Enclosure for Portable Monitors

    Industrial Enclosure For Air Quality Monitors

  • Temperature & Humidity Sensor

    Temperature & Humidity Sensor

  • Cigarette Light Adaptor

    Cigarette Light Adaptor

  • IP41 Remote Sensor Kit

  • Remote Sensor Kit
  • Wall Bracket
  • Lithium Battery Pack

    Lithium Battery Pack
